Technical Information - Fig No. 512

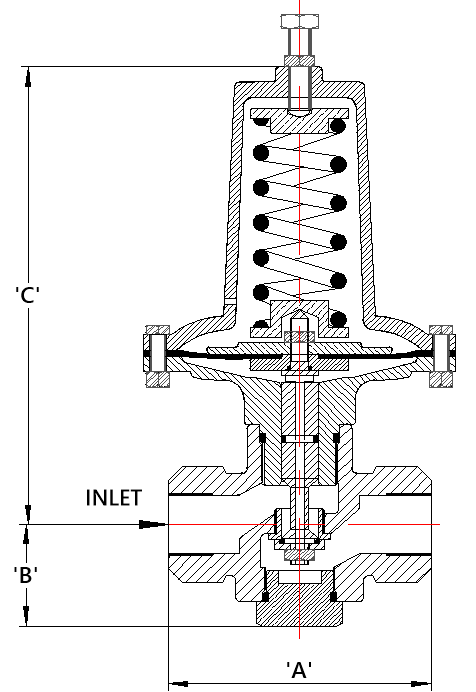

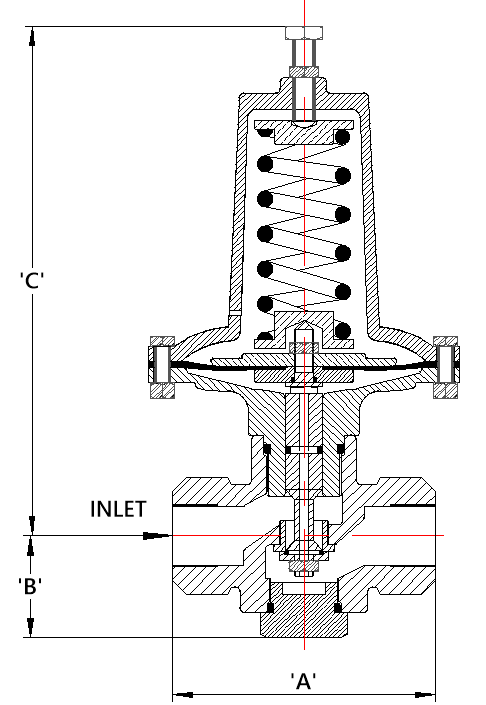

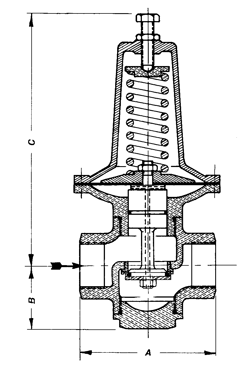

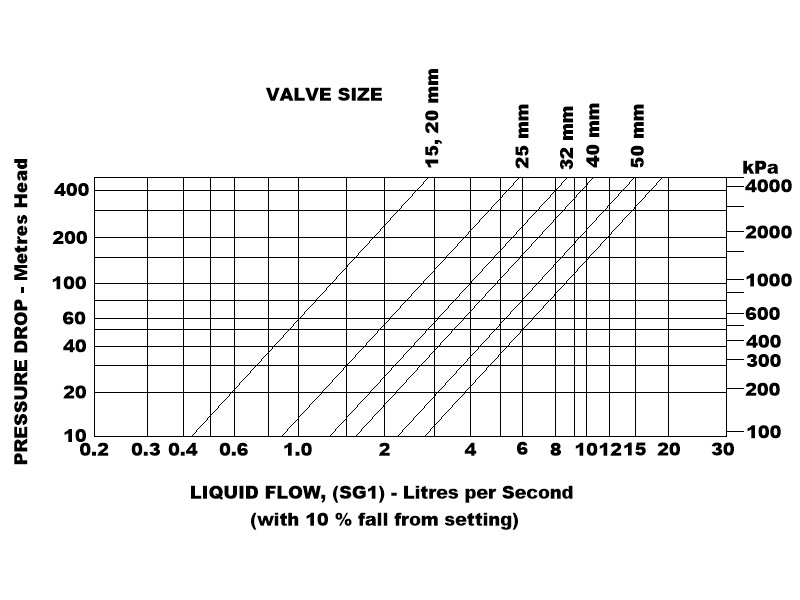

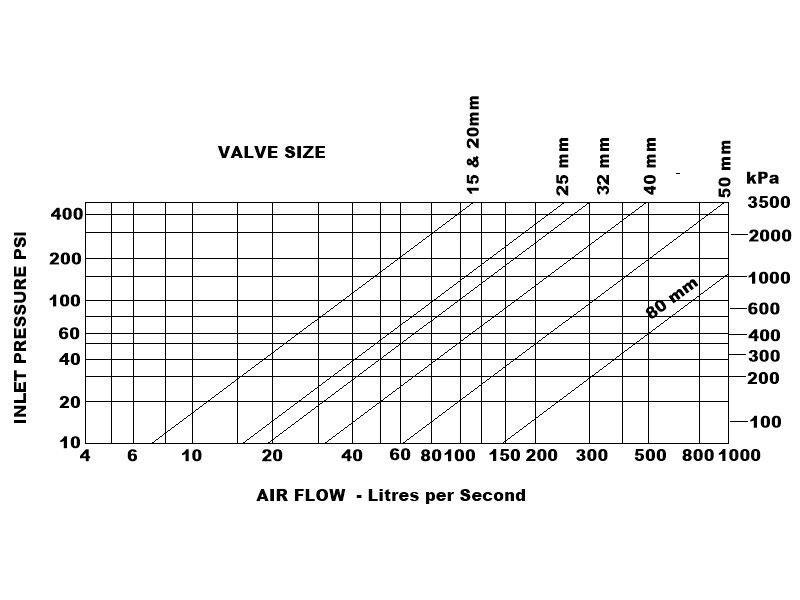

The Type ‘CD’ Fig. No. 512 Pressure Reducing Valve is direct-acting, self-contained, single seated, piston balanced, diaphragm controlled and spring regulated.
Reduced pressure is diverted to act upon the diaphragm and control the opening and closing of the valve against the flow in accordance with the regulating spring setting. The setting is unaffected by the inlet pressure variations in this balanced spindle valve.
Ideally suited to drop-tight applications of high pressure water, air, gas oil or chemical services.
|Connections||Screwed or flanged|
|Working Pressure||5000 kPa Maximum|
|Adjustable Ranges||0-120, 70-230, 200-700 kPa|
|Temp. Range||2 - 90oC|
|Mass / Kg||9||9||11||13||17||50|
|Body & Internals||Bronze AS 1565/836B|
|Spring Cage||Cast Iron|
|Diaphragm||Neoprene - reinforced|
|Valve Disc||Buna - N|
|Valve Spring||Grade 304 stainless steel|
|Regulating Spring||Spring Steel|
|Valve, Spindle & Seat||Grade 316 stainless steel|
