The Fig. 160 range of Relief
Valves are of stainless steel construction and suitable for relieving excess
pressures of liquids and gases where high discharge rates are not required. The
stainless steel construction makes them ideal for use with a wide range of
aggressive chemicals and gases.
The valve can be supplied with a sealing dome on the adjusting screw (Fig.
160-2) to contain any hazardous products.
Pressure adjustment is made by slackening the locknut on the adjusting screw,
and rotating it clockwise to increase or anti-clockwise to decrease the blow off
pressure.

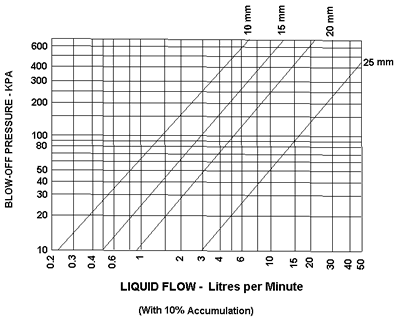

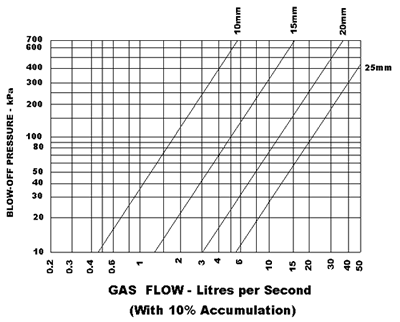

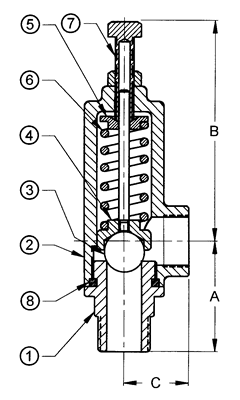

Dimensions (mm)
|
Valve Size
(mm) |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
|
A |
46 |
56 |
74 |
78 |
80 |
92 |
|
|
B |
74 |
105 |
131 |
151 |
143 |
159 |
|
|
C |
21 |
27 |
39 |
42 |
45 |
49 |
|
|
Mass/kg |
0.35 |
0.5 |
1 |
1.5 |
2 |
3 |
|
|
